Wavelength dispersive X-ray fluorescence spectrometer (WD-XRF) ZSX Primus II
Trade name
Wavelength dispersive X-ray fluorescence spectrometer (WD-XRF) Rigaku ZSX Primus II
Technical description
The ZSX Primus II RIGAKU X-ray Fluorescence Wave Dispersion Spectrometer (WDXRF) enables qualitative and quantitative analysis of elements in the range from nitrogen (N) to uranium (U) (Z = 7 - 92).
Spectrometer characteristics:
- X-ray tube with Rh anode, power 4kW, with front window Be (30µm) placed over the analysed sample
- accelerating voltage in the range of 2-60 kV and electron beam current in the range of 2-150 mA
- selectable primary beam filter (four filters: Ni-400, Ni-40, Al-125, Al-25)
- the ability to choose the diameter of the analysing beam (six masks with diameters: 35, 30, 20, 10, 1 and 0.5 mm)
- the ability to rotate the sample during measurement
- 7 analysis crystals for measurements in the N – U range
- mapping system (spot measurement) with CCD camera
- two detectors, scintillation and proportional flow, for the analysis of heavy and light elements, respectively.
Conditions for providing infrastructure
- according to the regulations listed on the laboratory's website: http://wydzlab.agh.edu.pl/wp-content/uploads/2020/11/Regulamin-WLBFSTiG.pdf
- scientific and research cooperation with AGH units and other domestic and foreign scientific units,
- within the projects of NCN, NCBiR, cooperation with industry and under contracts,
Type of accreditation / certificate:
Not applicable
Access type
External
Research capabilities
- qualitative and quantitative analysis of the elemental composition
- quantitative analysis using the standard method based on the prepared calibration curves in the N-U range or standard-free based on the algorithm of fundamental parameters in F-U range
- macroscopic and spot analysis of the chemical composition
- analysis of the chemical composition of solid and powder samples
- preparation in the form of pressed pellets and fused beads
Last update date
June 1, 2023, 6:02 a.m.
Year of commissioning
2012
Photos

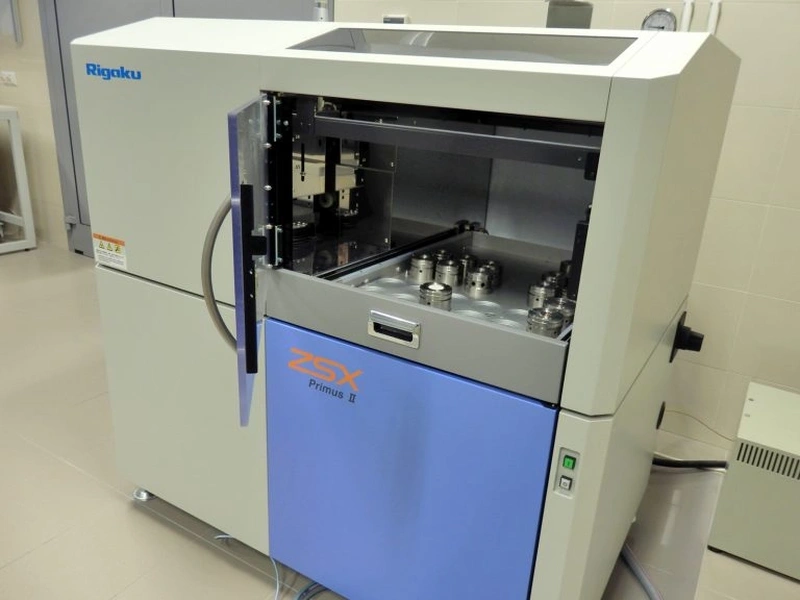

X-ray Fluorescence Spectrometer (WDXRF) ZSX Primus II RIGAKU
